Tanker density and temperature monitoring system

Ⅰ. Product Introduction

The tanker density and temperature monitoring system consists of a DSM-type fully automatic on-board density meter and management software.

The DSM-type fully automatic on-board density meter is a precision instrument for tanker metering, capable of accurately measuring density and temperature, and automatically calculating the corresponding volume and mass. When paired with management software, this system enables remote monitoring and traceability of data. It replaces traditional methods, offering safety, environmental protection, accuracy, and efficiency.

II. Functional Features

1. The equipment adopts an explosion-proof design overall

2. Measurement without opening the lid to prevent oil and gas leakage and reduce environmental pollution

3. Density measurement accuracy +0.3kg/m³, temperature measurement accuracy +0.1°C

4. Real-time automatic measurement, with measurement data automatically converted into standard density, VCF, and weight-based density

5. The measurement data cannot be modified or deleted, but can be remotely uploaded to a PC server for easy traceability and querying

6. It can adapt to various working conditions

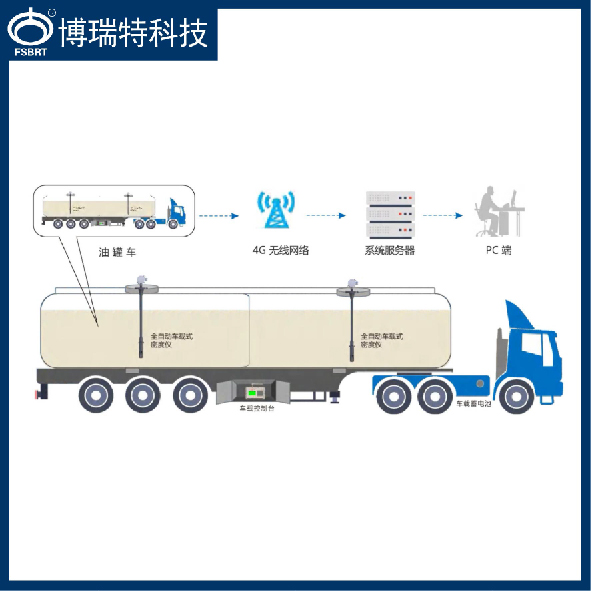

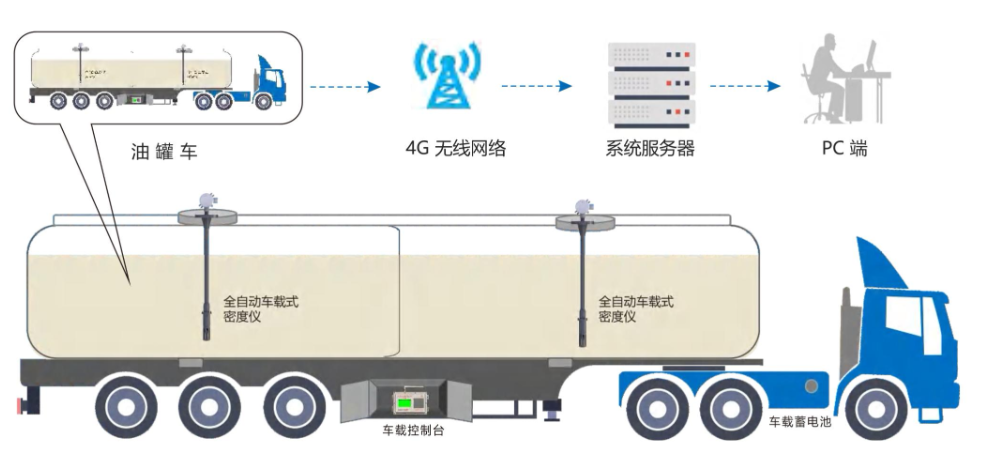

Ⅲ.system diagram
