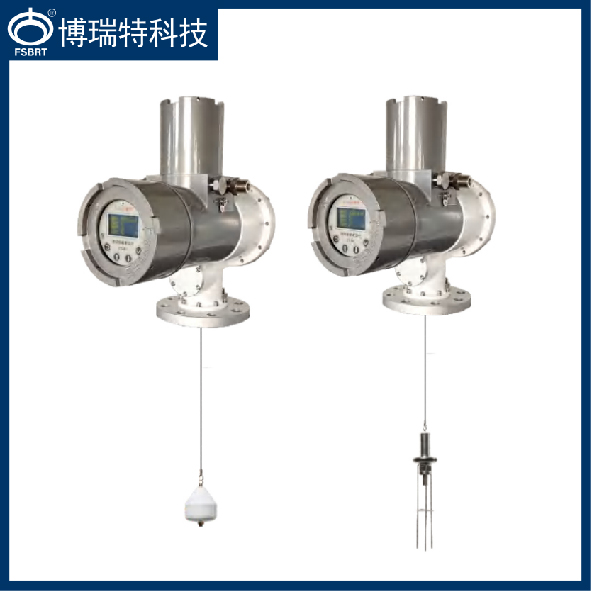

Servo level gauge

Ⅰ、 Product Introduction:

Servo level gauge is a high-precision measuring instrument with functions such as liquid level, density, oil-water interface measurement, etc. It can be connected to multi-point average thermometers, pressure transmitters, tank side displays and other equipment. It is the core of the entire automatic measurement and management system for storage tanks, and standard density can be achieved through supporting management software VCF、 Automatic conversion of volume and mass, with functions such as high and low liquid level alarm, density alarm, water level alarm, etc. It can be connected to SIS, PLC, DCS and other systems and widely used in oil depots, refineries, chemical tank areas, pipeline stations and other storage tanks.

Ⅱ、 Functional features:

1. Fully functional: liquid level, density, interface, tank bottom

2. High precision: liquid level resolution of 0.1mm, accuracy of ± 0.4mm, servo density accuracy of ± 3.0Kg/m2, oil-water interface better than ± 2mm

3. Safer: Magnetic coupling isolation is explosion-proof, and the electrical chamber is completely isolated from the oil and gas chamber

4. High intelligence: Standard signal output for easy signal processing, enabling networked operation and improving oil depot automation
