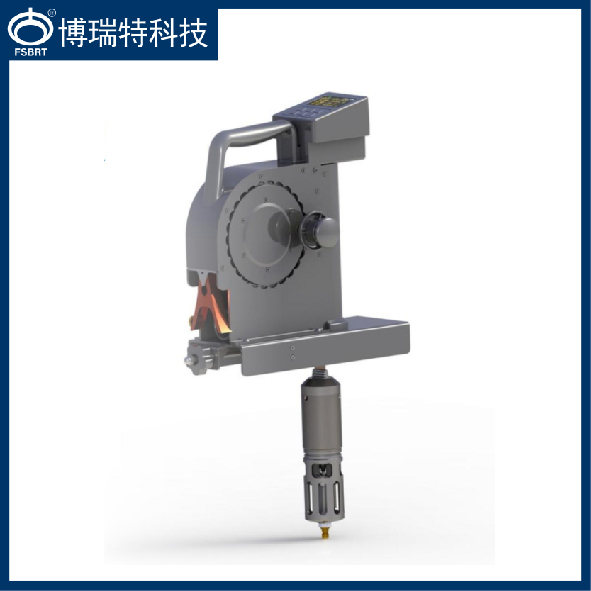

Portable multi-function measuring instrument

Ⅰ、 Product Introduction:

The portable multifunctional measuring instrument is a comprehensive measuring instrument for measuring liquid height, temperature, density, and oil-water interface. It can accurately measure liquid level and oil-water interface, and accurately measure density and temperature at any depth immersed in the liquid, and automatically convert the standard density and VCF at that point. Compared with traditional methods, this measuring instrument does not require special technical requirements or the cumbersome and error prone sample collection and measurement process, nor does it need to carry multiple measuring tools. With just one device, multiple measuring functions can be achieved. The accuracy of liquid level can reach ± 1mm, the accuracy of density can reach ± 0.0003g/cm, the accuracy of temperature can reach ± 0.1 ° C, and the accuracy of oil-water interface can reach 2mm.

Ⅱ、 Functional features:

1. No need for sampling, can directly measure liquid level, oil-water interface, density, temperature

2. Real time display of sensor measurement depth, with a measurement depth of up to 30 meters

3. Automatically convert standard density, weighted density VCF

4. Can store 5000 sets of data and upload wirelessly to a PC server

5. It can effectively detect the phenomenon of oil layering and uneven density distribution

6. It integrates multiple functions and can be used in conjunction with automatic measurement system software

Ⅲ、 Product Value:

1. Achieve precise measurement of liquid level and water level, eliminate measurement errors

The portable multifunctional measuring instrument can achieve a liquid level accuracy of ± 1mm and an oil-water interface accuracy of ± 2mm. Whether beginners or professional metrologists use this equipment to measure the same storage tank, the liquid level repeatability does not exceed 1mm, ensuring the stability of liquid level data measurement.

2. Accurate density and temperature measurement reduces disputes over the quantity and quality of oil products

Not affected by weather, artificial factors, and other factors, significant breakthroughs have been achieved in accuracy. The accuracy of density measurement can reach ± 0.0003/cm, and the accuracy of temperature measurement can reach ± 0.1 ° C, reducing disputes over quantity and quality in oil trade handover.

3. No need for sampling, eliminate sampling errors, and eliminate safety hazards

No sampling is required during measurement, and data such as oil density, temperature, standard density, weight density, VCF, etc. in the storage tank can be safely, accurately, and quickly measured. At the same time, it also eliminates safety hazards when oil is poured back into the sampling port, avoiding the occurrence of oil spills during sampling, and solving measurement safety hazards and oil leakage problems.

4. Improved work efficiency, with measurement time less than 1/10 of the original

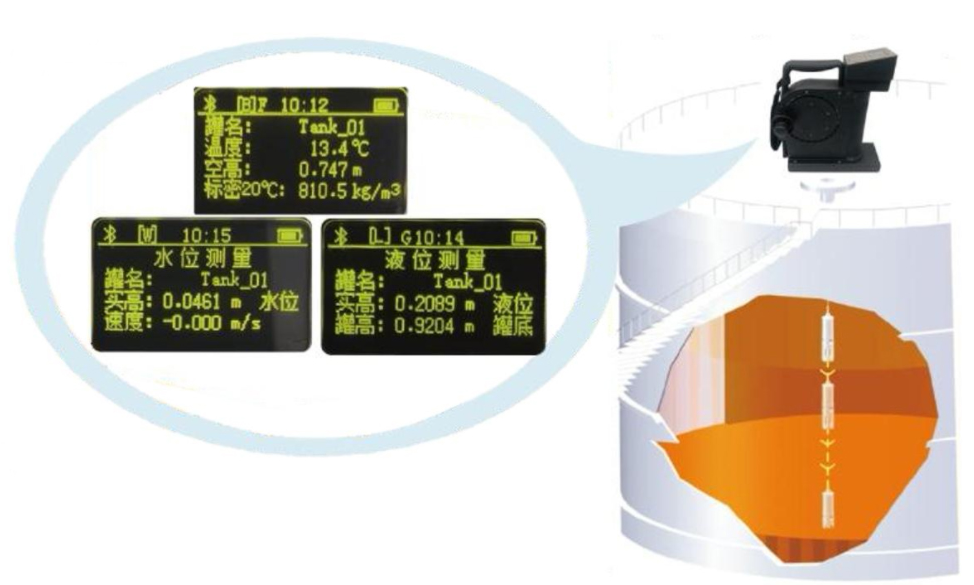

The portable multifunctional measuring instrument has a short measurement time, only requiring 30-60 seconds to complete density and temperature measurements, and real-time digital display of the measurement sensor position. It automatically converts standard density, weight density, and VCF, and the measurement data can be saved at any time. Breaking through the traditional measurement mode, it has brought a new revolution to frontline metrology work.

5. Effectively detect the phenomenon of oil layering and uneven density distribution

The density sensor has fast response, accurate measurement, and real-time display of oil density at different heights, effectively detecting oil layering and uneven density distribution.

6. Can be used for trade handover measurement

Suitable for on-site height, density, temperature, and water level measurement of petroleum and liquid products in various oil tanks, oil tankers, and oil tanks. It can also be used to inspect and calibrate measuring equipment in oil depots or gas stations

7. Measurement data has traceability and accountability, and can be permanently saved

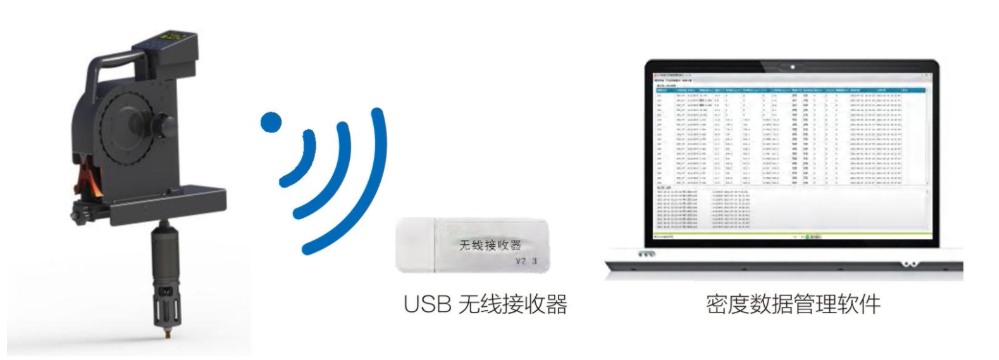

The instrument can store 5000 sets of data, and the measurement data cannot be modified or deleted. The data is uploaded to the PC server through a wireless module for easy data traceability and query.

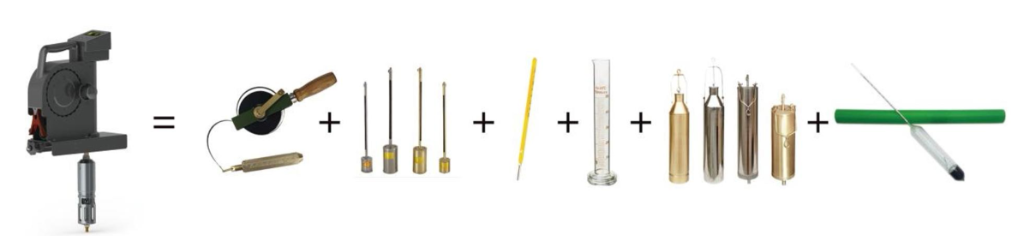

8. One machine for multiple uses, reducing labor intensity

Portable multi-function measuring instrument
