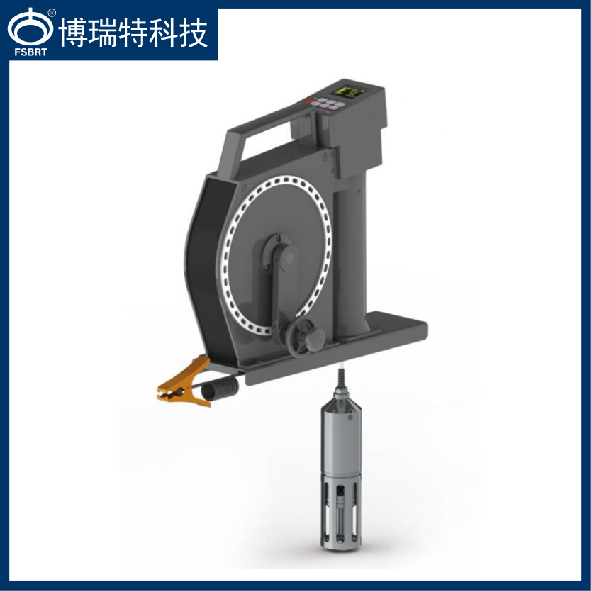

Portable micro-vibrating cylinder digital density meter

Ⅰ . Product Introduction:

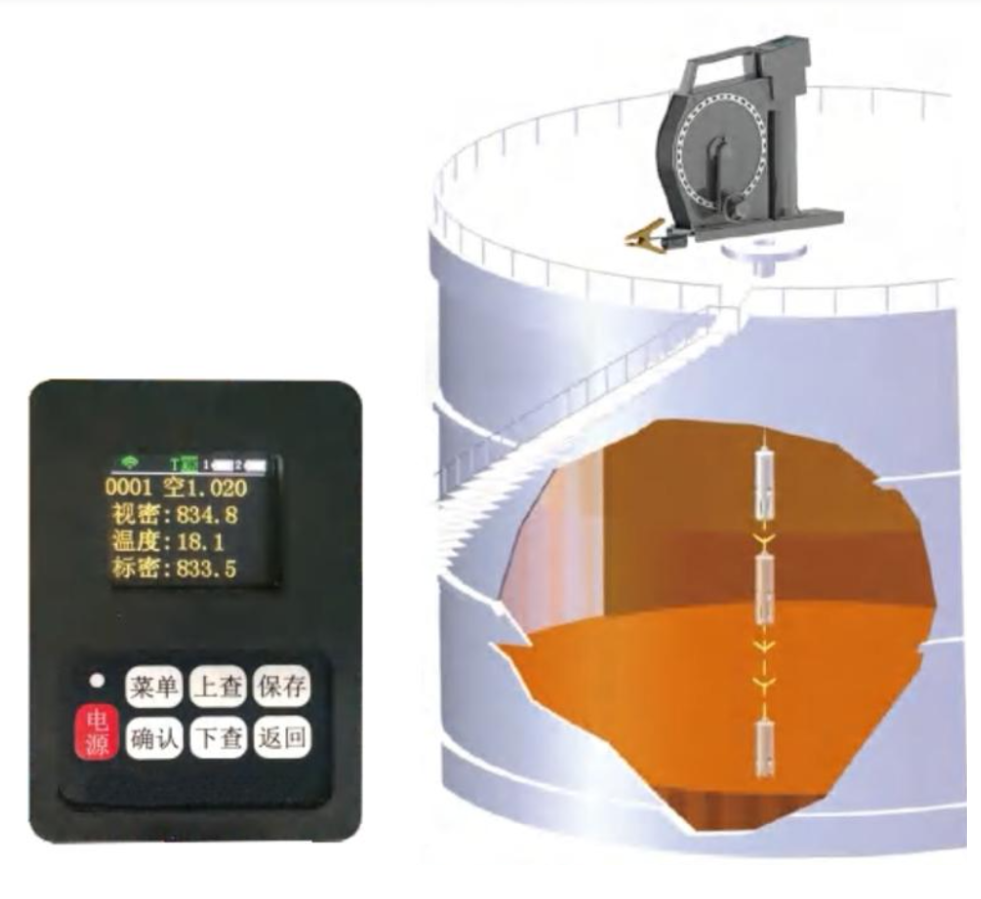

The portable micro-vibrating cylinder digital densitometer is a precision instrument for measuring liquid density and temperature. It can be directly immersed into any depth of the liquid for measurement, and provides real-time digital display of the height position, temperature, and density at that point. It also automatically converts the standard density and VCF at that point. Compared to traditional methods, this densitometer requires no special technical requirements and eliminates the tedious and error-prone process of sample collection and measurement. It can measure and analyze the density distribution at different heights in real-time and continuously, effectively detecting phenomena such as density stratification and product inconsistency. The measurement operation is fast and accurate, enhancing measurement precision and work efficiency. The density accuracy can reach ±0.0003g/cm3, and the temperature accuracy can reach ±0.1°C.

II. Functional Features:

1. No sampling is required; density and temperature can be directly measured

2. The measurement time only takes 30~60s

3. Display the measured depth of the sensor in real time, with a measurement depth of up to 30 meters

4. Automatically convert standard density, weight-based density, and VCF

5. It can store 5000 sets of data and upload them wirelessly to a PC server

6. Not affected by weather or human factors

7. It can effectively detect phenomena such as oil stratification and uneven density distribution

Ⅲ、 Product Value:

1. No need for sampling, eliminate sampling errors, and eliminate safety hazards

No sampling is required during measurement, and data such as oil density, temperature, standard density, weight density, VCF, etc. in the storage tank can be safely, accurately, and quickly measured. At the same time, it also eliminates safety hazards when oil is poured back into the sampling port, avoiding the occurrence of oil spillage during sampling and solving measurement safety hazards and oil leakage problems.

2. Improved work efficiency, with measurement time less than 1/10 of the original

The digital density meter has a short measurement time, only requiring 30-60 seconds to complete density and temperature measurements, and real-time digital display of the measurement sensor position. It automatically converts standard density, weight density, and VCF, and the measurement data can be saved at any time.

Breaking through the traditional measurement mode, it has brought a new revolution to frontline metrology work.

3. Accurate density and temperature measurement reduces disputes over the quantity and quality of oil products

Not affected by weather, artificial factors, and other factors, significant breakthroughs have been achieved in accuracy, with density measurement accuracy reaching ± 0.0003g/cm; The accuracy of temperature measurement can reach ± 0.1 ° C, reducing the number and quality disputes in oil trade handover.

4. Effectively detect the phenomenon of oil layering and uneven density distribution

The density sensor has fast response, accurate measurement, and real-time display of oil density at different heights, effectively detecting oil layering and uneven density distribution.

5. Measurement data has traceability and accountability, and can be permanently saved

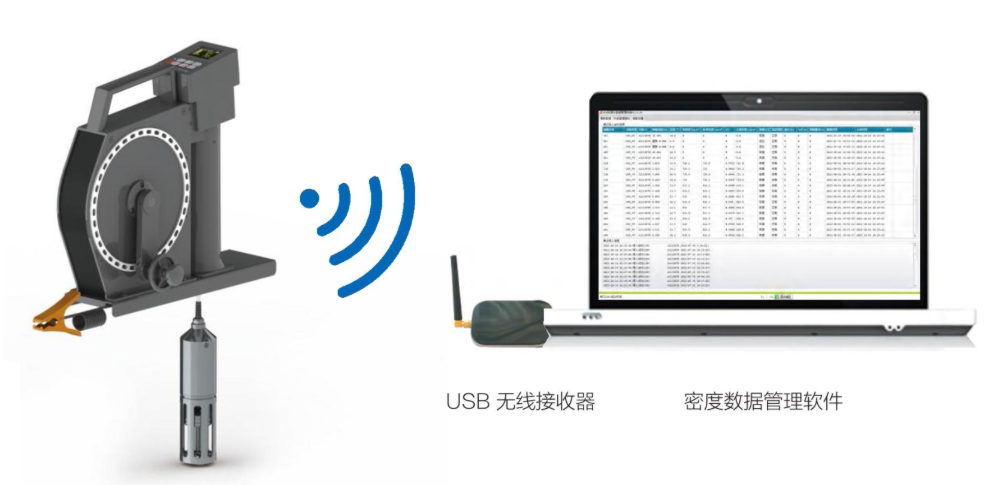

The instrument can store 5000 sets of data, and the measurement data cannot be modified or deleted. The data is uploaded to the PC server through a wireless module for easy data traceability and query.

Ⅳ、 Product application:

1. Rapid measurement of liquid density and temperature in storage tanks, process tanks, and tank trucks

2. Oil layering measurement

3. Medium blending and uniformity testing

4. Product consistency identification and density distribution detection

5. Check and calibrate the automatic metering system of oil depots or gas stations
