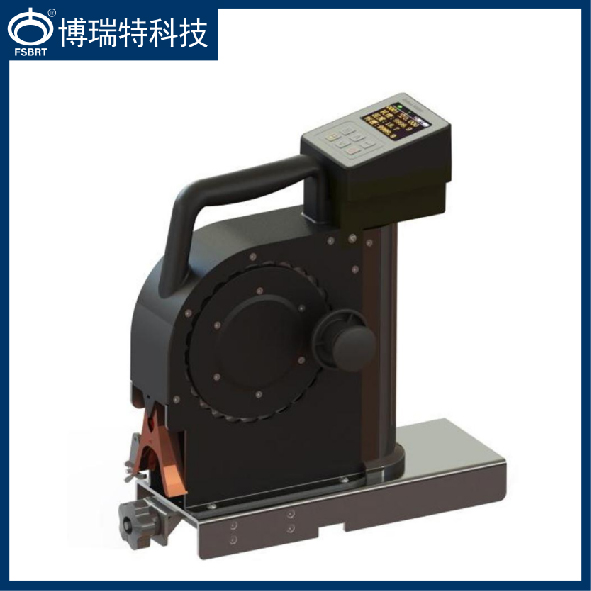

Portable Electronic Gauging Dipstick (PEGD)

Ⅰ. Product Introduction:

The portable electronic dipstick, also known as a portable liquid level meter, is a multifunctional device capable of accurately measuring liquid level, temperature, and oil-water interface. This device can be used for trade measurement and handover, liquid level calibration, temperature calibration, oil-water interface detection, inventory counting and measurement. Compared to traditional manual measurement, the portable electronic dipstick can reduce the workload of on-site personnel and improve efficiency. The accuracy of liquid level measurement can reach ±1mm, temperature measurement can reach ±0.1°C, and oil-water interface measurement can reach ±2mm, making it a complete replacement for manual measurement.

II. Functional Features:

1. High precision and stability, with a liquid level accuracy of ±1mm, temperature accuracy of ±0.1°C, and oil-water interface accuracy of ±2mm

2. Supported by national standards

3. Multi-purpose, capable of simultaneously measuring liquid level, water level, and temperature

4. Simple operation, no need for complex actions, improving measurement efficiency

5. It can store 5000 sets of data and upload them wirelessly to a PC server

6. No temperature drift, no sensor aging

III. Product Value:

1. Easy and convenient to use, eliminating errors caused by human factors

Whether it's for beginners or professional metrologists, using an electronic dipstick to measure the same tank, the repeatability of the liquid level measurement is no more than 1mm, ensuring the stability of liquid level data measurement.

2. High precision and high stability, allowing for regular calibration of the liquid level gauge

3. Compliance with national standards

The national standards "GB/T13894-1992 Petroleum and Liquid Petroleum Products - Liquid Measurement (Manual Method)" and "GB/T13236-2011 Petroleum and Liquid Petroleum Products - Manual Level Measurement Equipment for Storage Tanks" both specify the measurement of ullage and the usage specifications and methods for portable multi-purpose rulers.

IV. Product Application:

Suitable for use in storage tanks, oil tankers, railway tank cars, road tankers, and other similar locations
