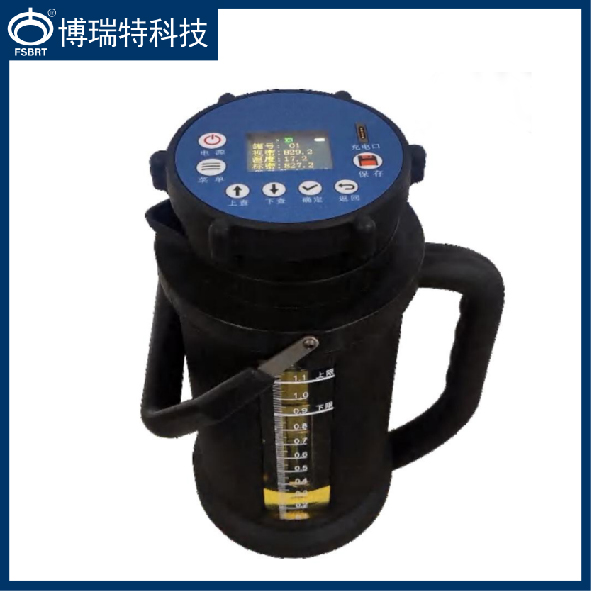

Handheld micro-vibrating cylinder digital densitometer

Ⅰ. Product Introduction:

The handheld micro-vibrating cylinder digital densitometer is a precision instrument for measuring liquid density and temperature. This densitometer requires only 1L of sample to quickly measure density and temperature, and simultaneously convert to standard density. The digital and visual measurement of the handheld micro-vibrating cylinder digital densitometer makes oil product testing faster, more accurate, and more convenient. The density accuracy can reach ±0.0003g/cm, and the temperature accuracy can reach ±0.1°C.

II. Product Introduction:

Density can be measured in just 1.1 seconds

2. It can directly measure liquid density and temperature on-site, and automatically convert them to standard density

3. It can store up to 5000 sets of data and upload them wirelessly to a PC server

4. Not affected by factors such as weather and human factors

5. Closed measurement avoids errors caused by issues such as oil evaporation

6. Suitable for operations in extremely cold weather, with a minimum operating temperature of -40°C

III. Product Value:

1. Work efficiency has been improved, with measurement time being less than 1/10 of the original

The digital densitometer boasts short measurement time, simple operation, and the ability to save measurement data at any time, thereby enhancing work efficiency.

2. Accurate density and temperature measurements have reduced disputes and controversies over quantity and quality

The handheld micro-vibrating cylinder digital densitometer is unaffected by factors such as weather and human intervention, achieving a significant breakthrough in accuracy. Its density measurement accuracy can reach ±0.0003g/cm³, and its temperature measurement accuracy can reach ±0.1°C, reducing disputes over quantity and quality in oil product trade handover.

3. Quickly detect the quality of oil products and promptly identify illegal activities such as adulteration and fraud of oil products

Driven by interests, incidents of adulteration and substitution of oil products during transportation occur from time to time. In the past, gas stations conducted quality inspections of oil products before unloading, mostly relying on visual observation and glass float meter measurements, making it difficult to detect phenomena such as adulteration and passing off inferior products as superior ones. Digital density meters can quickly detect the quality of oil products, shifting from post-event accountability to proactive prevention.

4. The measurement data is traceable and accountable, and can be permanently stored

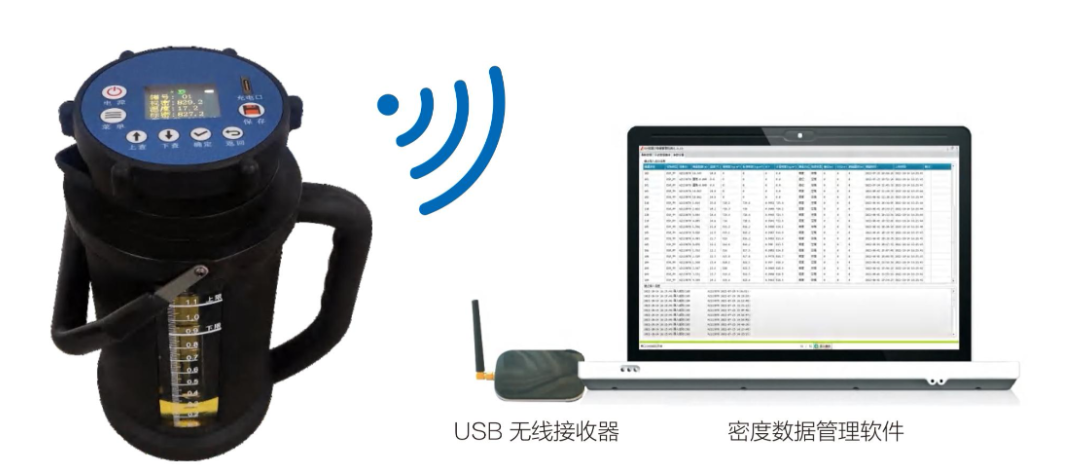

The instrument can store 5,000 sets of data, and the measured data cannot be modified or deleted. It uploads the data to a PC server through a wireless module, facilitating data traceability and inquiry, and enhancing the level of informatization.

IV. Product Application:

1. Rapid detection of oil product quality

2. On-site sampling for rapid measurement of density and temperature

3. Water-soluble alcohol detection
